'59 Project November 2005

Click on a photo to view a larger image.
A new copy of your browser will be launched to view the image.
Click on the exit button to return to this page.

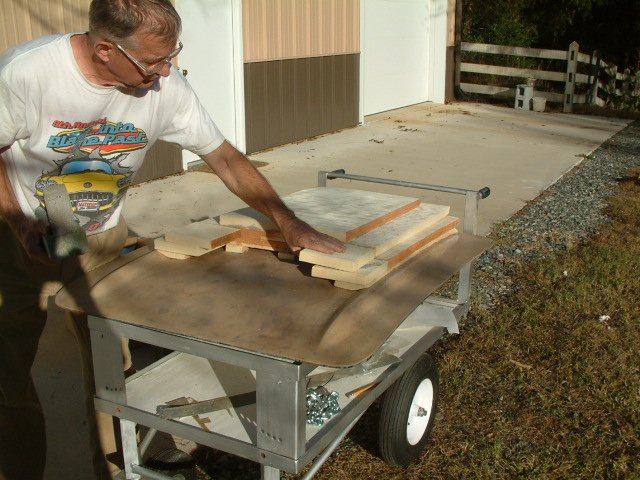

Making a hood scoop.  I used 1" thick foam insulation boards and glued them in place.

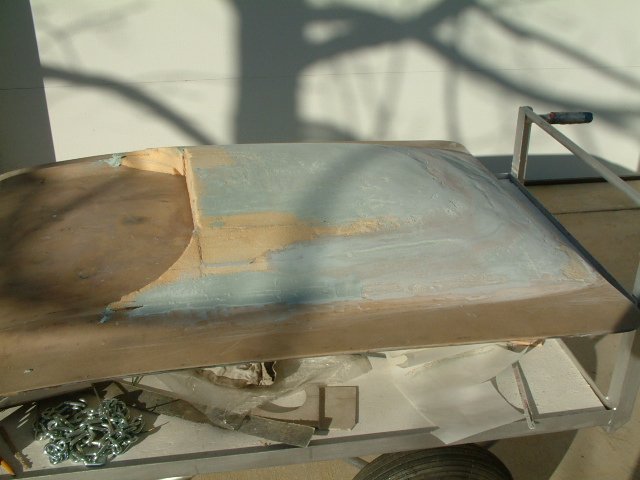

The soft foam is easily sanded to shape

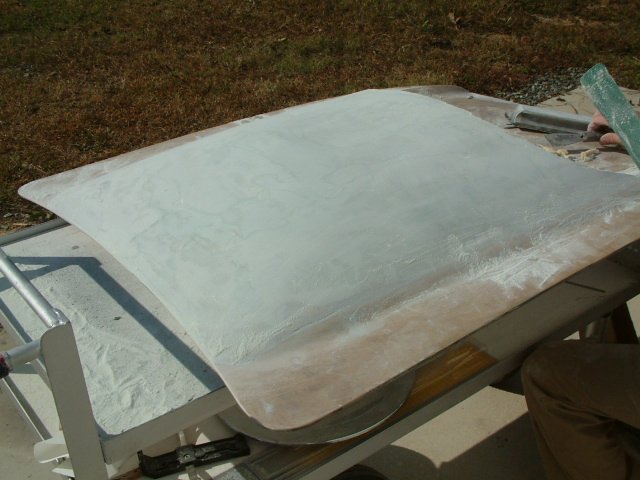

Polyester body filler is added for the final shaping.



t_11110511.jpg (5578 bytes)    t_11110509.jpg (5767 bytes)     t_11110507.jpg (5415 bytes)    t_11110508.jpg (4508 bytes)

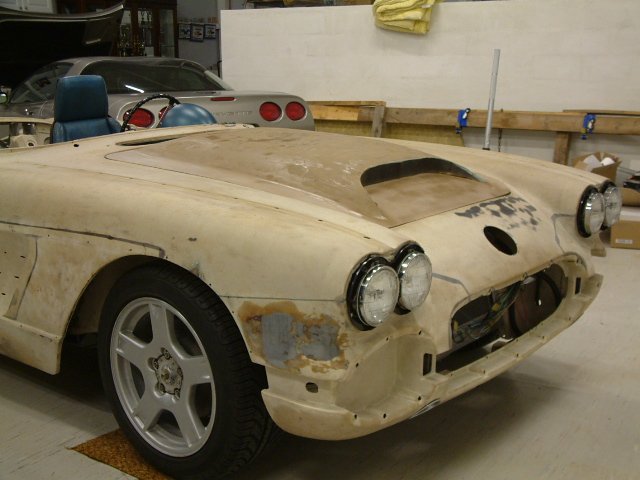

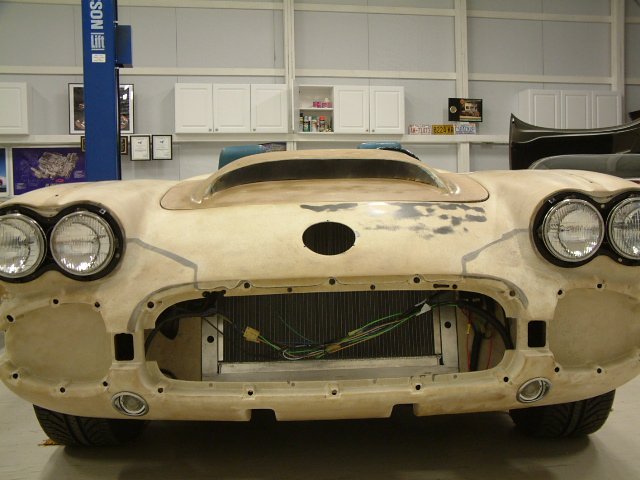

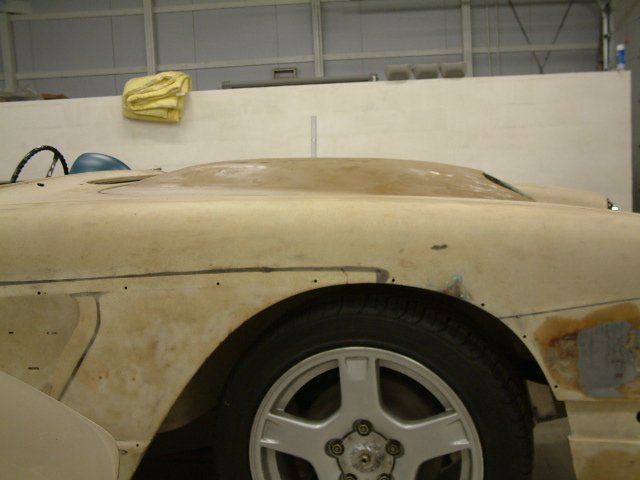

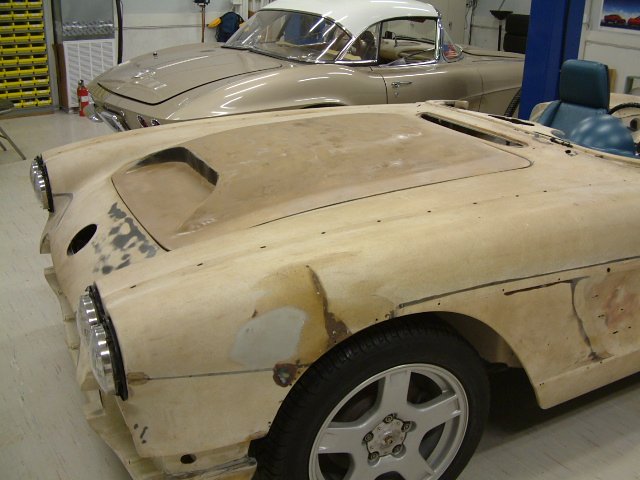

  I decided to extend the front opening and lower the scoop to an absolute minimum.  There will be about 1.5" clearance at the rear of the air cleaner and about 0.5" in the front.  I am using a filter top and a 3" tall paper filter.
