'59 Project November 2008

Click on a photo to view a larger image.
A new copy of your browser will be launched to view the image.
Click on the exit button to return to this page.

In an effort to reduce weight and save space in the engine compartment, I am going to try using a non-power assisted brake master cylinder.  I obtained a MOPAR master cylinder as used on a 1969 Road Runner and modified the mounting flamge so it would bolt up to the original C1 mounting bolts.

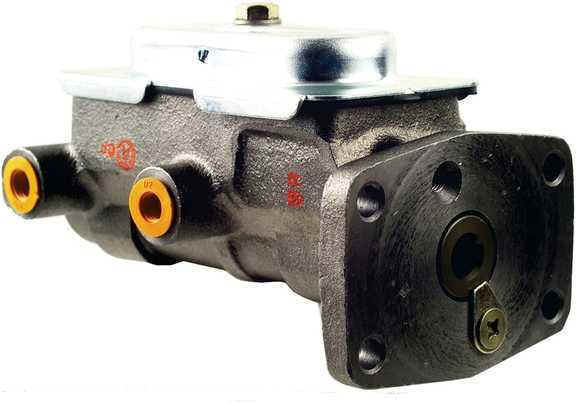

Here is a picture of the master cylinder  from NAPA, part number: NMC M1874M

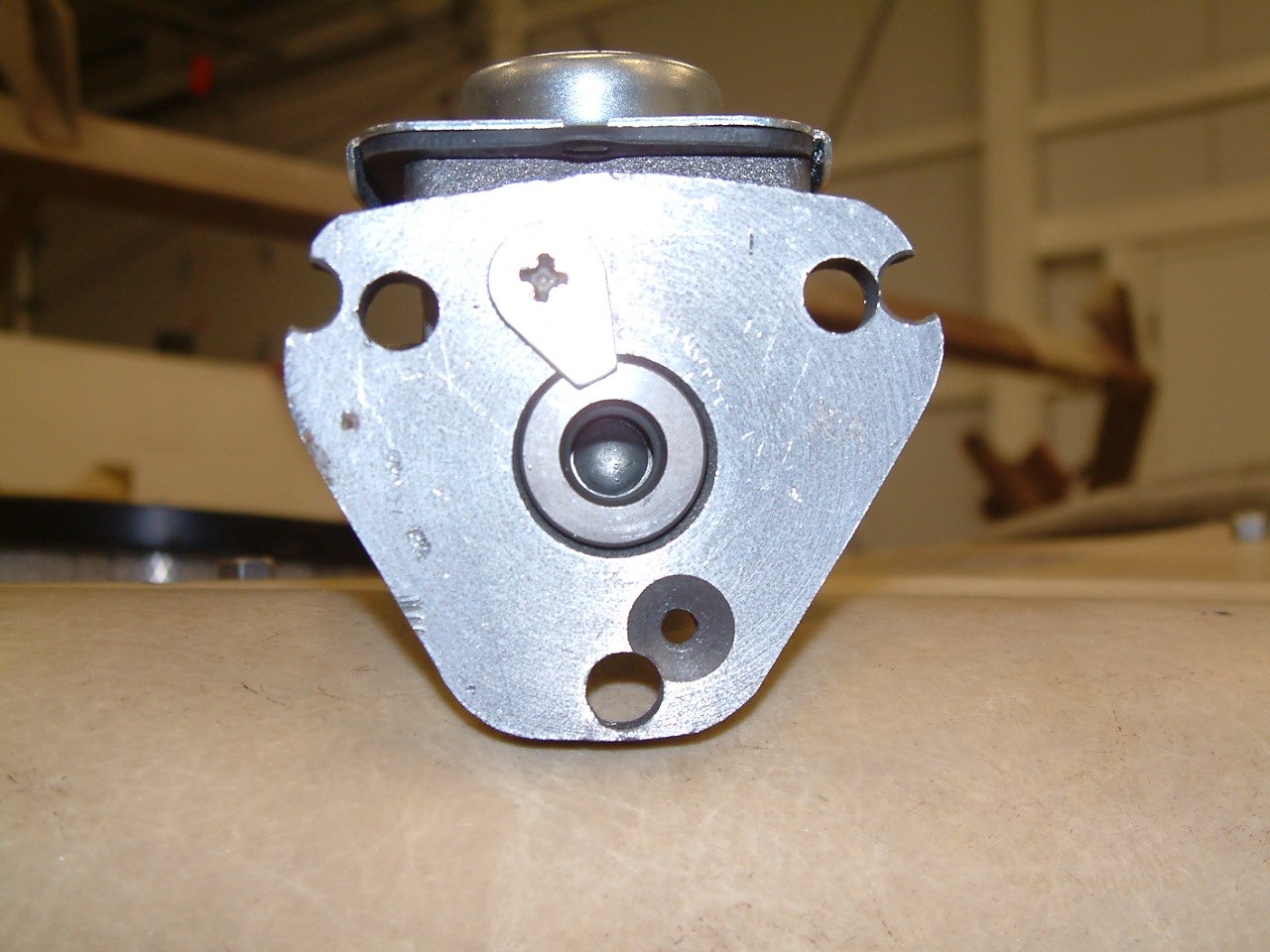

Mounting flange modified to fit '59 master cylinder mounting holes.  The holes are tapped so that mounting bolts can be inserted from inside the driver's compartment.

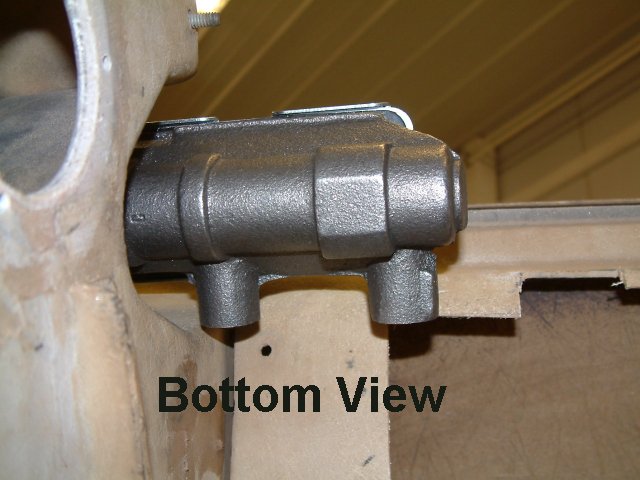

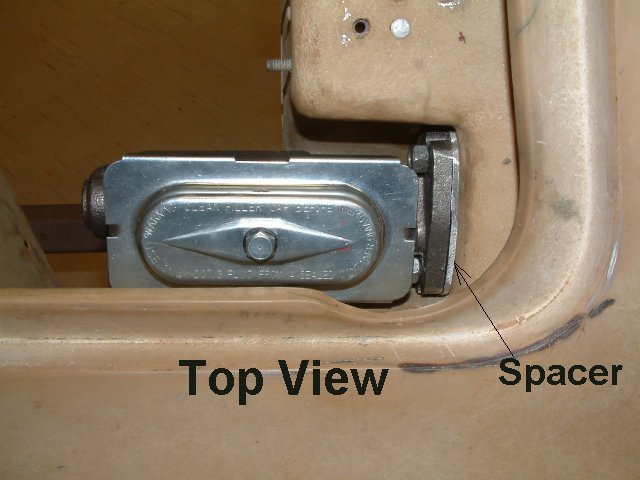

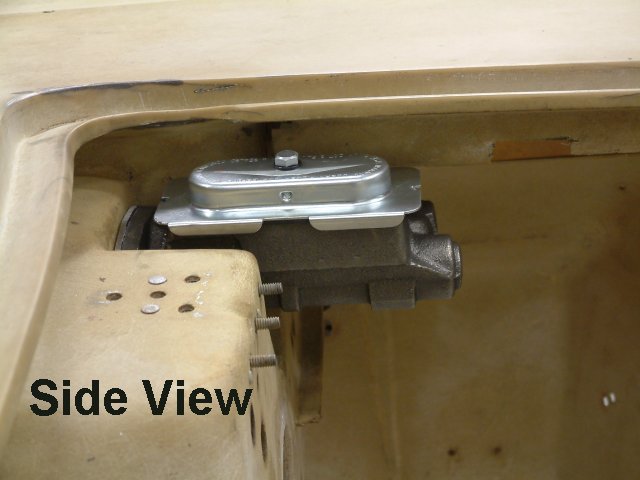

Modified master cylinder mounted in the car

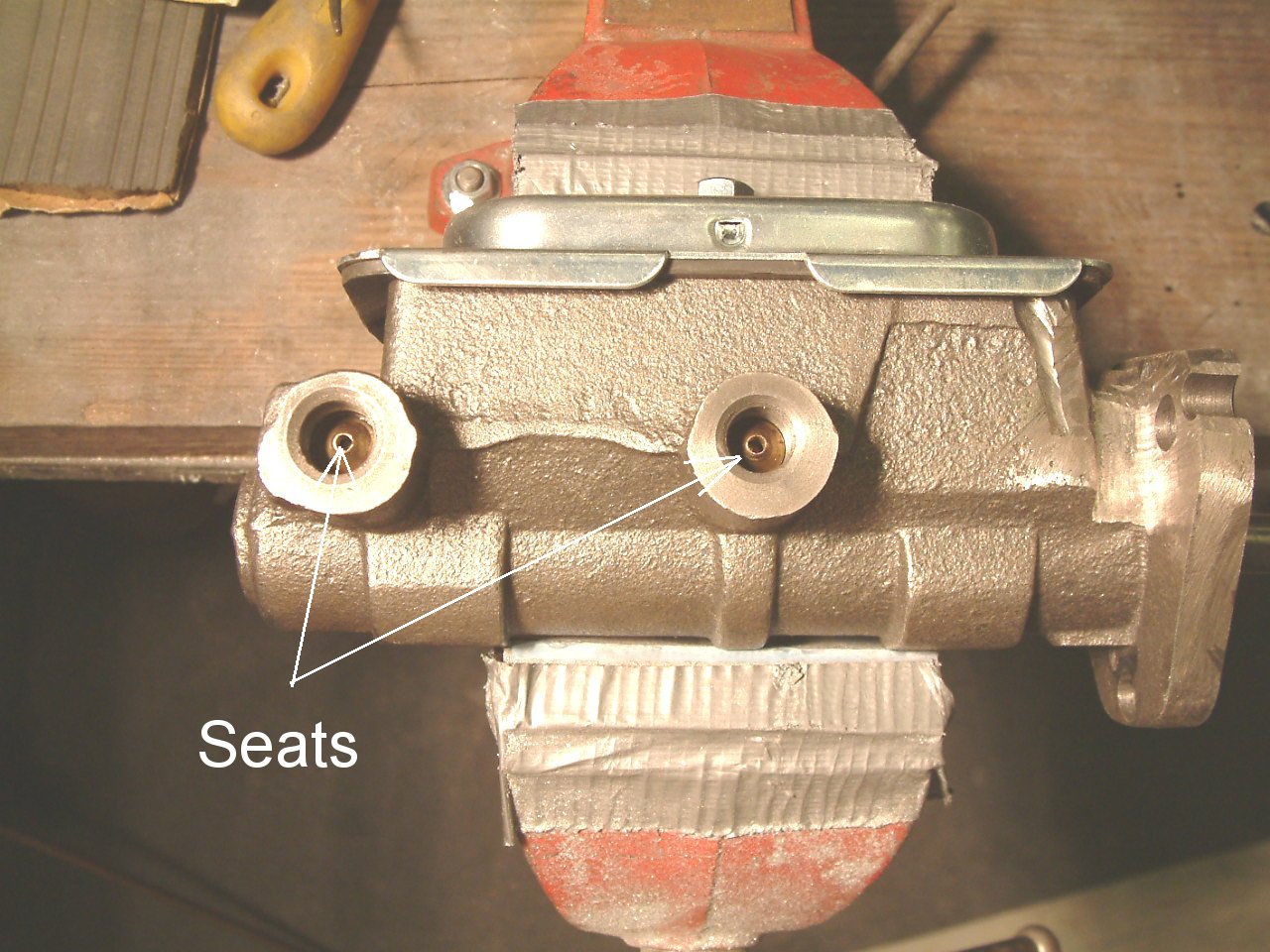

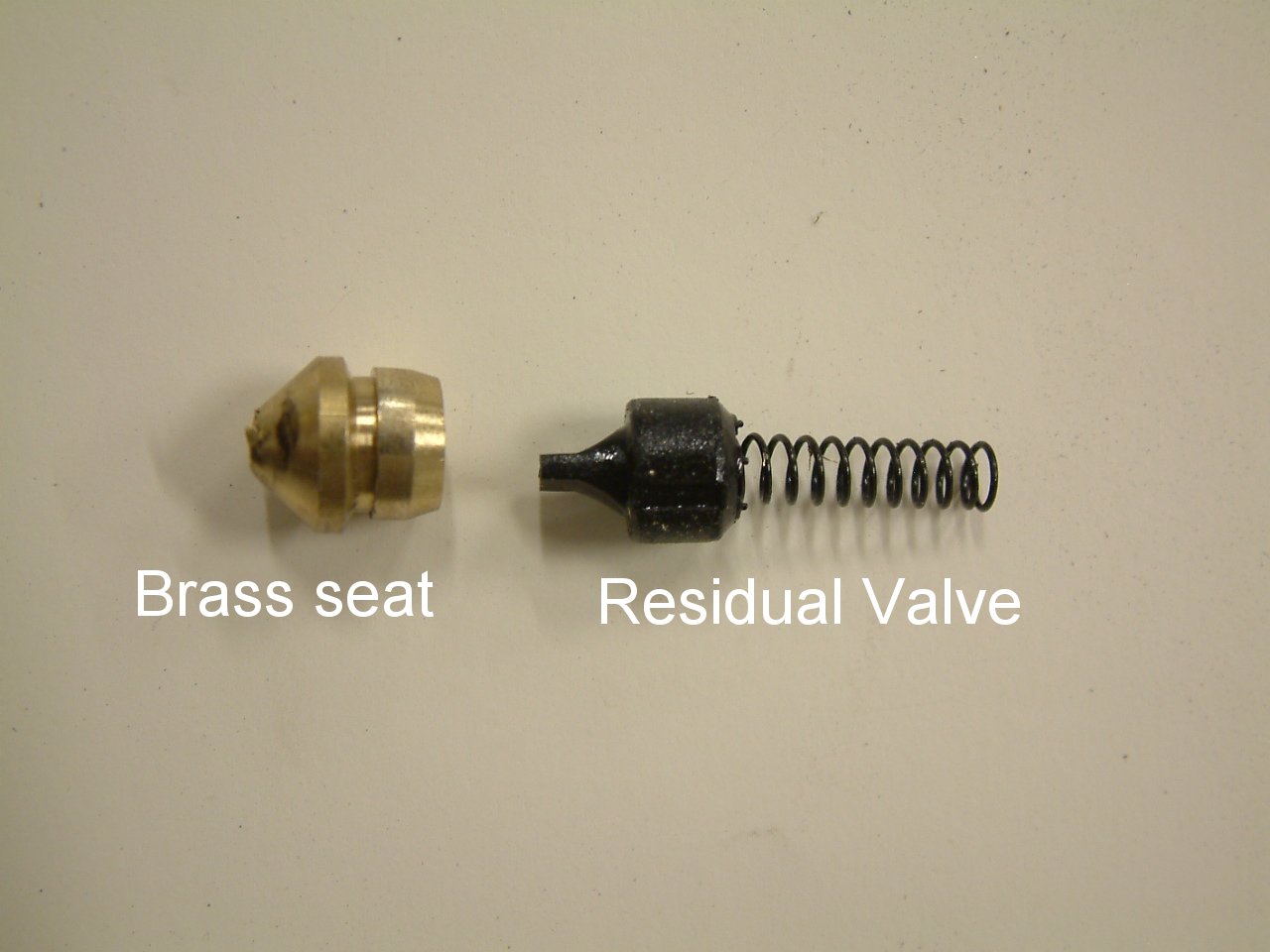

The MOPAR master cylinder has residual valves under the seats.   Since my car has 4 wheel disc brakes I removed the residual valves by tapping the seat with a 6 x 32 tap and then inserting a 6-32 screw and prying the seat out.

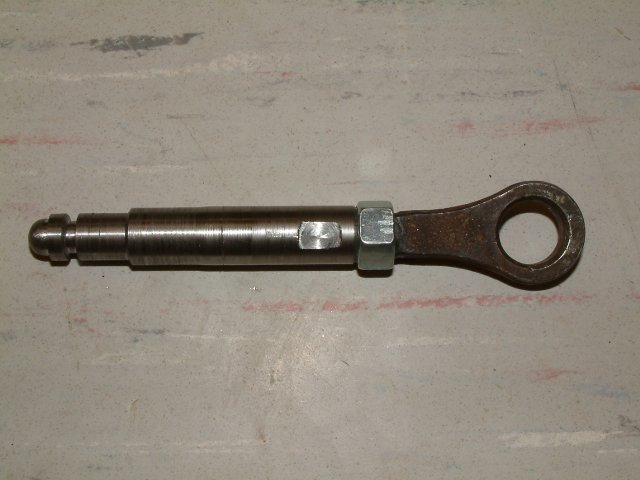

A new pushrod was fabricated using a C1 pushrod eye.

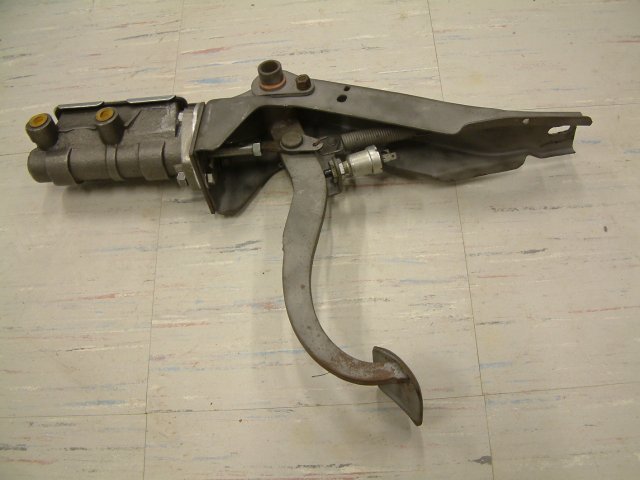

The completed brake pedal assembly.
