'59 Project November 2004

Click on a photo to view a larger image.
A new copy of your browser will be launched to view the image.
Click on the exit button to return to this page.

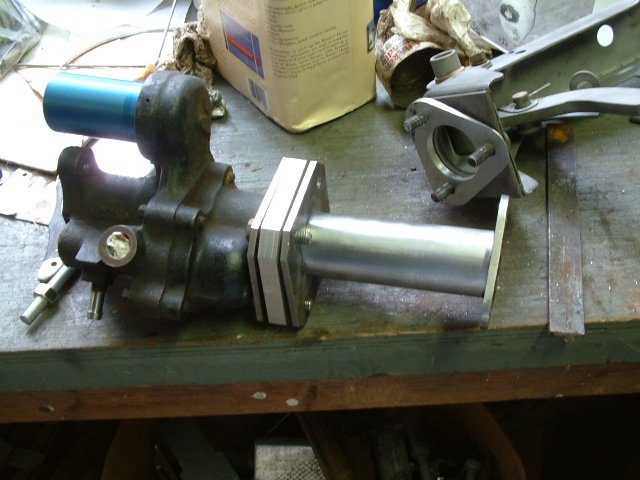

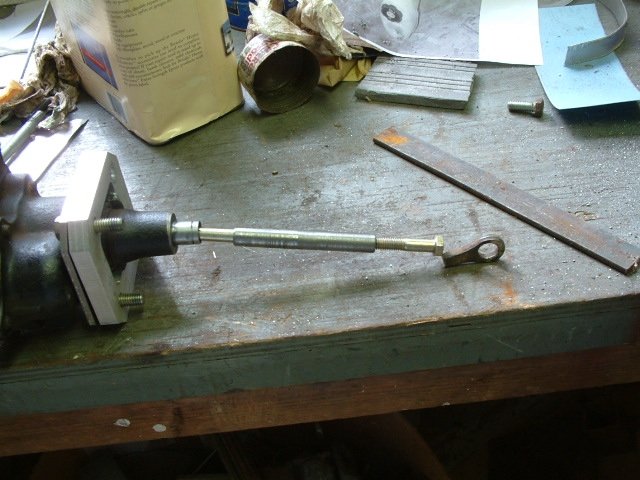

Instead of a vacuum operated brake booster, I am planning on using a "hydroboost" unit.  This is a brake booster that operates off of the power steering hydraulic system.  The unit shown here is from a 1987 Chevy C3500 truck.  I purchased this unit off ebay for about $25.00 just to use to make brackets and check clearances.  The blue "can" on the side of the unit is a nitrogen cannister that provides some residual braking should the engine quit.

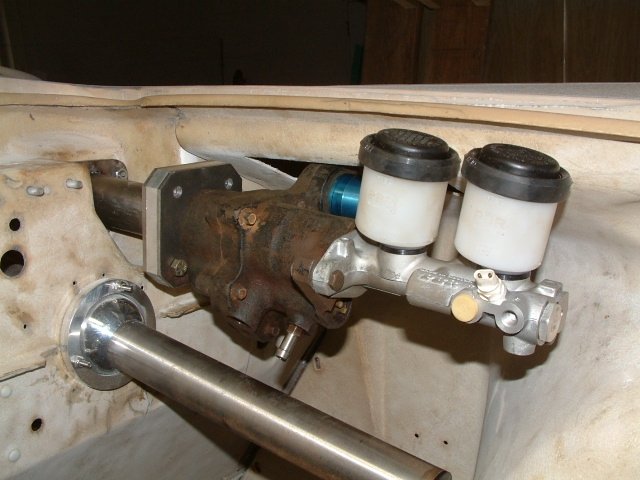

Here is the hydroboost with the master cylinder installed in the engine compartment.






Here is an under dash view of the brake pedal.

Note: I decided to remove the hydroboost in favor of a dual manual master cylinder.
