'59 Project June 2005


Click on a photo to view a larger image.
A new copy of your browser will be launched to view the image.
Click on the exit button to return to this page.

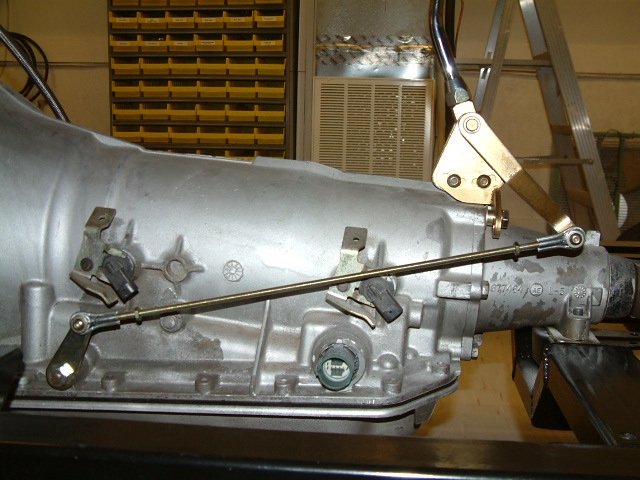

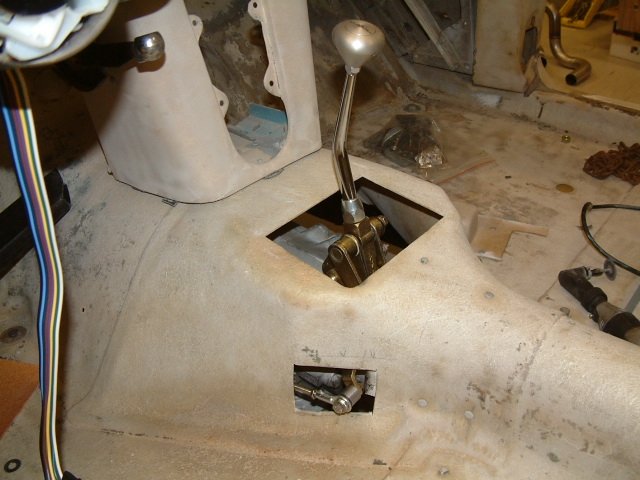

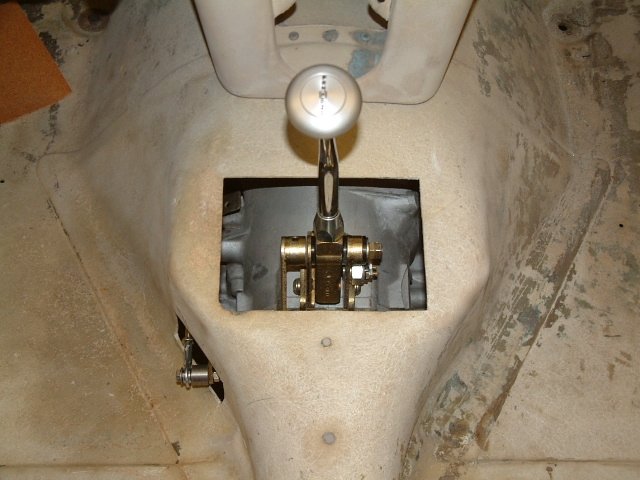

Lokar tail mount shifter.  Only problem encountered was that the actuating rod interferred with the rear speed sensor.  A 0.5" spacer on the end of the shifter lever solved this problem, but also necessitated a larger cut in the transmission tunnel.

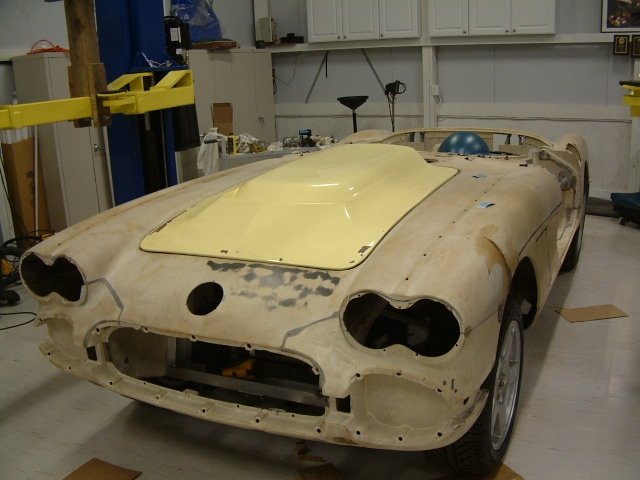

A friend gave me an "L88" hood that was made for aC1.   This hood will solve my carb clearance problem, but it is going to take a lot of work to make it fit.

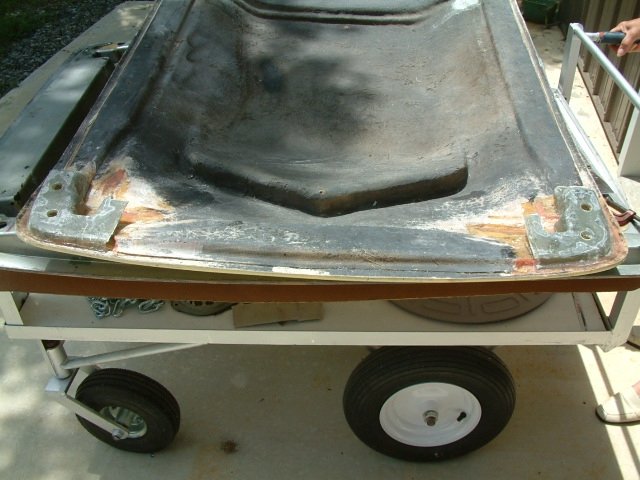

The hinge mount pads were too small, not exactly in the correct location, and been filled with body filler, so I removed them.  I made a fiberglass mold of the hinge mounting pads from an original 59 hood and attached them to the new hood.
